Bifold closet doors are one of the most common DIY projects, and one of the most common callbacks we get. They’re simple in principle, but the track, pivots and alignment all have to be right or the doors will sag, bind and pop out. Here’s how to do it properly.

Before You Start: Measure the Opening

Measure the finished opening width at the top, middle and bottom, and the height at the left, center and right. Bifold doors are sized to the opening, so use the smallest width and check that the height leaves clearance over the floor. Our guide on measuring a closet door opening covers this in detail.

Confirm bifolds are right for the room

Each side swings out about half a panel width. Make sure that clears the bed, dresser and walkway. If not, look at bifold alternatives.

Tools and Hardware

Drill/driver and bits
Tape measure and level
Hacksaw (to cut the track if needed)
The track, top and bottom pivot brackets, guide wheel and aligners included with the door

Step-by-Step Installation

Cut and mount the top track. Center it in the opening, level it and screw it securely into the header.
Install the bottom pivot bracket on the floor or jamb, directly below the top pivot location. Use a level or plumb line.
Insert the pins. Install the top pivot pin, bottom pivot pin and guide wheel into the door panels as directed.

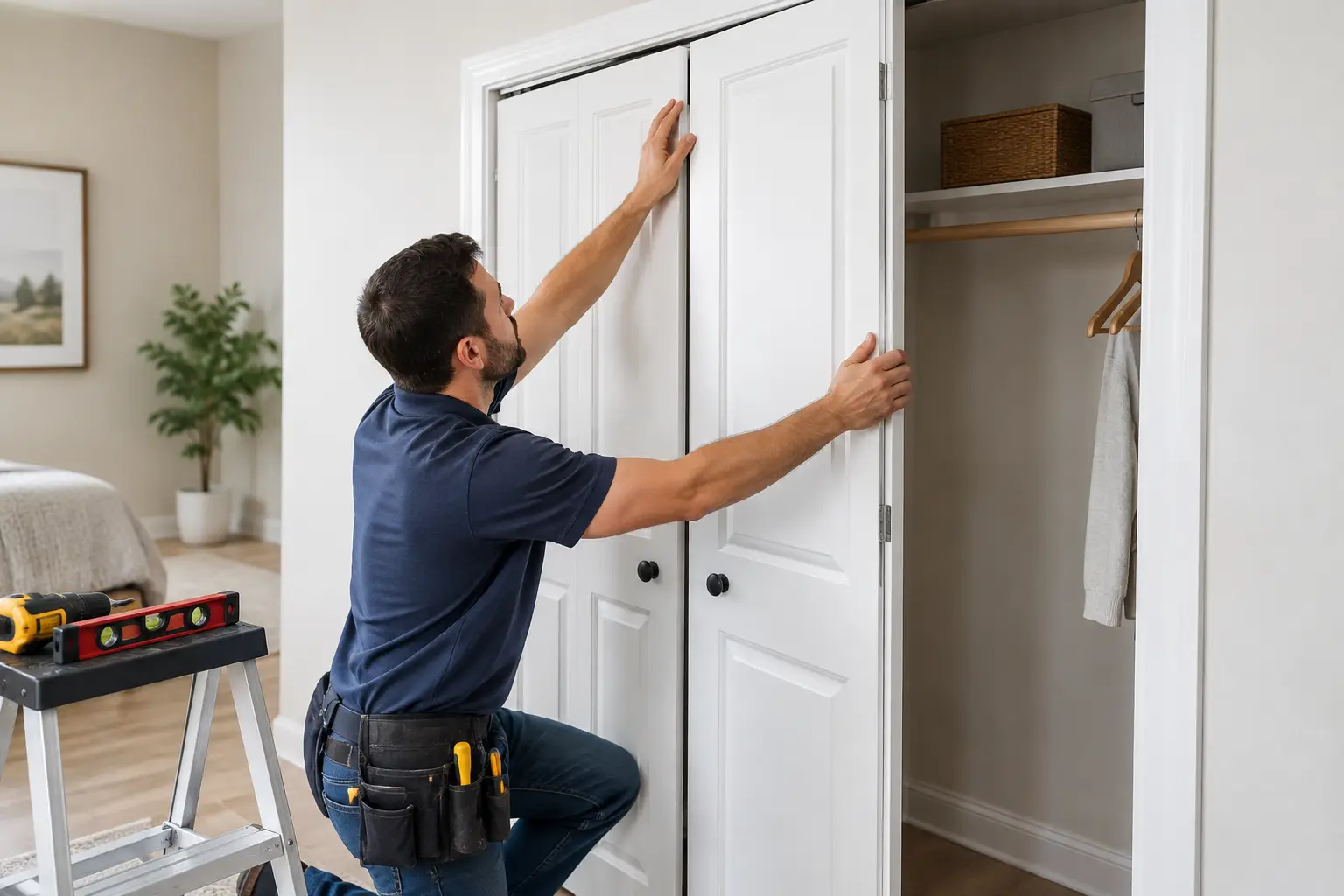

Hang the door. Set the bottom pivot into its bracket, then tilt the door up and slide the top pivot and guide wheel into the track.
Adjust the height. Use the bottom pivot adjustment to set an even gap at the floor.
Repeat for the second door on a double bifold, and add aligners so the doors meet flush.

Adjust for Even Gaps and Smooth Movement

Close the doors and check the gap along the jamb. Slide the top pivot bracket in the track to square the door until the gap is even top to bottom. Doors should fold and unfold smoothly without rubbing.

Common Bifold Problems and What They Mean

Door pops out of the track: guide wheel not seated, or top pivot bracket loose.
Door rubs the jamb: pivot brackets not aligned vertically.
Doors don’t meet in the middle: heights uneven or aligners missing.
Door sags over time: loose bracket screws or a weak header.

When Professional Installation Is the Better Choice

For out-of-square openings, heavy glass or mirror bifolds, or if you’re replacing multiple closets, a professional install saves time and callbacks. We measure for free, install most closets in a day, haul away the old doors and back the work with a 1-year labor warranty.

Frequently Asked Questions

Do bifold doors need a bottom track?

Most use only a top track plus a bottom pivot bracket.

How much gap should a bifold door have at the floor?

Enough to clear the flooring without rubbing, typically around half an inch. Check the manufacturer’s instructions.
